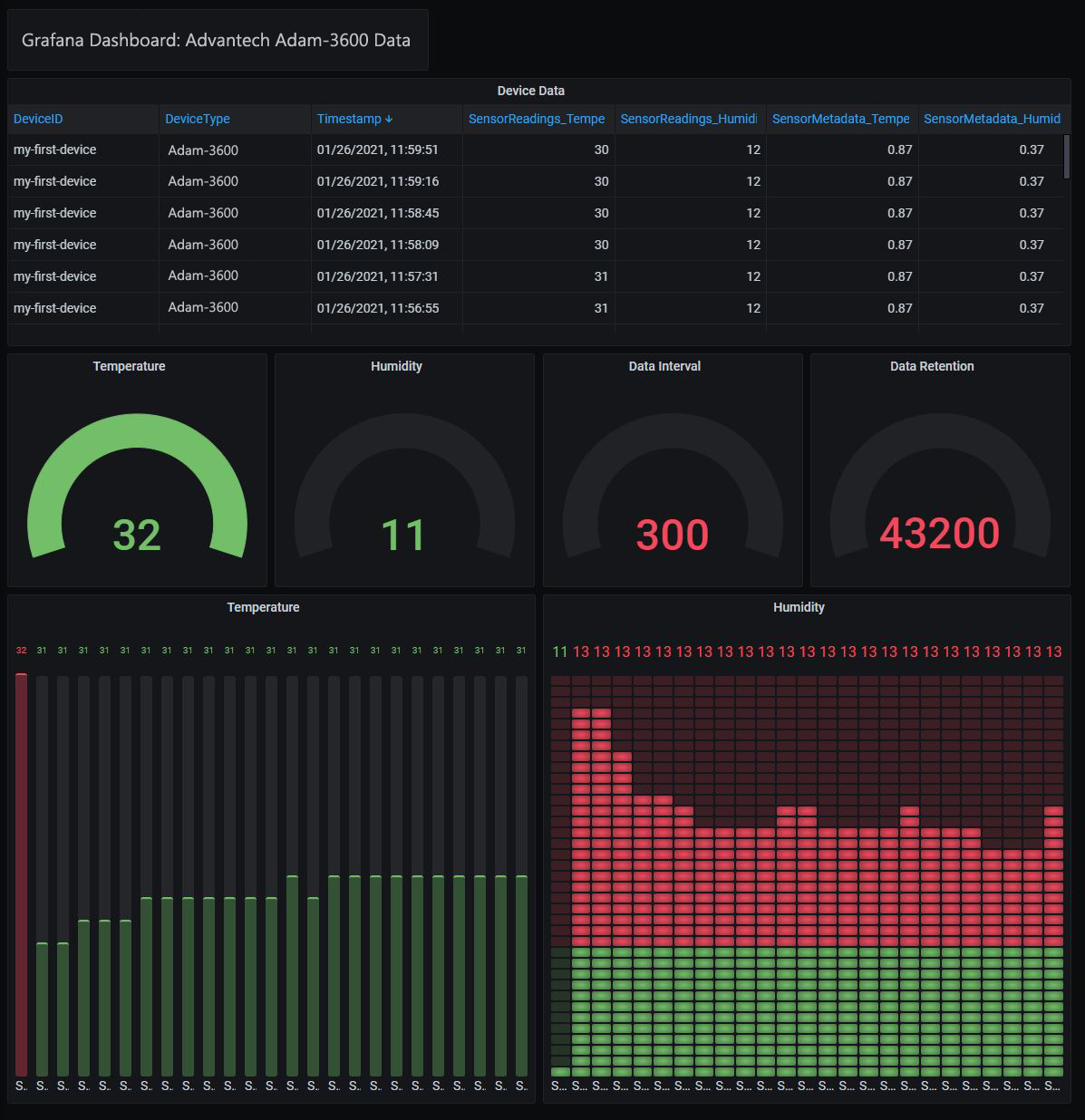

Advantech Grafana Dashboards

August 8, 2021 by Matt Jackson, Product Support Specialist @ Fathym

Once you have your Advantech Edge Intelligent RTU data flowing to the cloud, it's time to create some Grafana Dashboards so that you can easily monitor everything. But first things first, let's get our Advantech Edge Intelligent RTU connected to Microsoft Azure.

Advantech Logo

Advantech has a video here that shows how to connect your Advantech RTU to an Azure IoT Hub. It's a great video and very informative. However, instead of going through all of the tedious steps outlined in the video of setting up an Azure IoT Hub. I prefer to use Fathym's IoT Ensemble. With one click I can register my Advantech device and immediately get access to the data for downstream use in alerts, dashboards, and visualizations. Behind the scenes we've already created an Azure resource group, storage containers, the storage endpoints, and everything else to help manage your data. After I enroll my device in IoT Ensemble, it displays the IoT Hub connectionstring. I take the connectionstring into Advantech TagLink Studio to use as my Azure Key and I'm ready to rock. Here's a screenshot of my connected Advantech RTU.

IoT Ensemble List Device

The Advantech data is immediately flowing to IoT Ensemble and I can view the data on screen. Reminder that behind the scenes in IoT Ensemble the Advantech data is stored in Microsoft Azure in blob storage, as well as in CosmosDB.

How to access data in Microsoft Azure

Behind the scenes in IoT Ensemble the Advantech data is stored in Microsoft Azure in blob storage, as well as in CosmosDB. Read This to learn more about accessing your data.

Fathym's IoT Ensemble is providing an easy-to-use UI for interacting with the data instead of using the Azure portal - and it saves me a ton of time and money.
